Name: 1NT1-7 //
Brand: HONEY
SKU: 0005055
Price: 48 USD
Availability: InStock

Ana Sayfa
Electromechanical

Stok Kodu :0005055

1NT1-7 //

$ 40,00 + KDV

Stok Sayısı :: 3000
Model# :: HONEY
Ürün Barkodu :
KDV Hariç :: $ 40,00 + KDV
Fiyatlarımıza KDV dahil değildir
Lütfen güncel stok bilgisi ve fiyat için mail atınız.

Adet

Telefon ile Sipariş

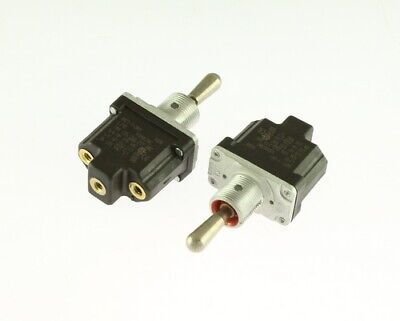

1NT1-7, Honeywell MICRO SWITCH NT Series Toggle Switch, SPDT - 1 pole, 3 position. (Mom.On-Off-Mom.On), Screw terminal, Standard Lever, UL/CSA L192, IP67/IP68 sealed, transportation grade toggle. MICRO SWITCH NT Series toggle switches meet the need for a rugged, cost-effective toggle switch. Quality construction features include a seal between the toggle lever and bushing, and between the cover and case. These switches can be used where panels are subject to splashes, hosedowns, or outdoor environments. The ""Easy-Start"" threaded bushing enables quick alignment of mounting nut to decrease the chance of cross threading. The panel stand-off with O-ring feature available on some listings, eliminates the need for behind-the-panel hardware, provides uniform panel height, and provides a panel to cover seal.

MICRO SWITCH™ NT SeriesCommercial-Grade Toggle Switches

Honeywell MICRO SWITCH™ NT Series toggle switches meet the need for a rugged, cost-effective toggle switch.

Quality construction features include a seal between the toggle lever and bushing, and between the cover and case.

These switches are suitable for applications in many demanding outdoor environments, where the panels are sub-jected to vibration from equipment, temperature extremes, dust, splashing water, and/or hose directed water.

They are capable of withstanding exposure to heavy accumulations of early morning dew that may condense on thecontrol panel in cabs of vehicles left outdoors overnight.

The NT toggle switches with larger standard metal or plasticlevers are well suited for gloved-hand operation.

Available in both step-base and ﬂat-base styles, the NT Series offers three popular styles of termination: 6-32 screws,solder lugs with 3,0 mm [0.12 in] diameter hole, or 6,35 mm [0.25 in] quick connect terminals.

The optional “Easy Start” threaded bushing enables quick alignment of the mounting nut to minimize any crossthreading.

The panel stand-off with O-ring feature available on some listings eliminates the need for behind-the-panelhardware, provides a uniform panel height, and a panel-to-cover seal.

MICRO SWITCH™ Commercial-Grade Toggle Switches

Table 1. Specifications

Characteristic Parameter
Description	Commercial-grade toggle switch (step base and flat base options)
Sealing	IP67/IP68; NEMA 3, 3R, 4, and 13
Operating temperature	-40 °C to 71 °C [-40 °F to 160 °F]
Actuators	Standard, locking, special design, tab
Action	2- or 3- position; momentary and maintained
Mounting	Bushing 15/32 in (0.47 in) Ø
Circuitry	SPST, SPDT, DPST, DPDT, 4PST, 4PDT
Terminations	Screw, solder, quick connect
Contacts	Silver alloy, gold plated
Amp rating	Up to 20 A (resistive)
Approvals	UL, CSA, CE
Measurement	26,7 mm H x 33,5 mm W x 22,6 mm D [1.05 in H x 1.32 in W x 0.89 in D]

Table 2. UL and CSA Electrical Ratings

Rating code Electrical rating
L192	10 amps, 125, 250, 277 Vac; ¼ Hp, 125 Vac; ½ Hp, 250, 277 Vac; 3 amps, 125 Vac “L”
L191	15 amps, 125, 250, 277 Vac; ½ Hp, 125 Vac; 1 Hp, 250, 277 Vac; 5 amps, 125 Vac “L”
