Specifications

Supplier: TE Connectivity / Raychem Brand

Pluggable I/O Accessory Type: Tinel-Lock Adapter

Overbraid Termination: Tinel-Lock Ring

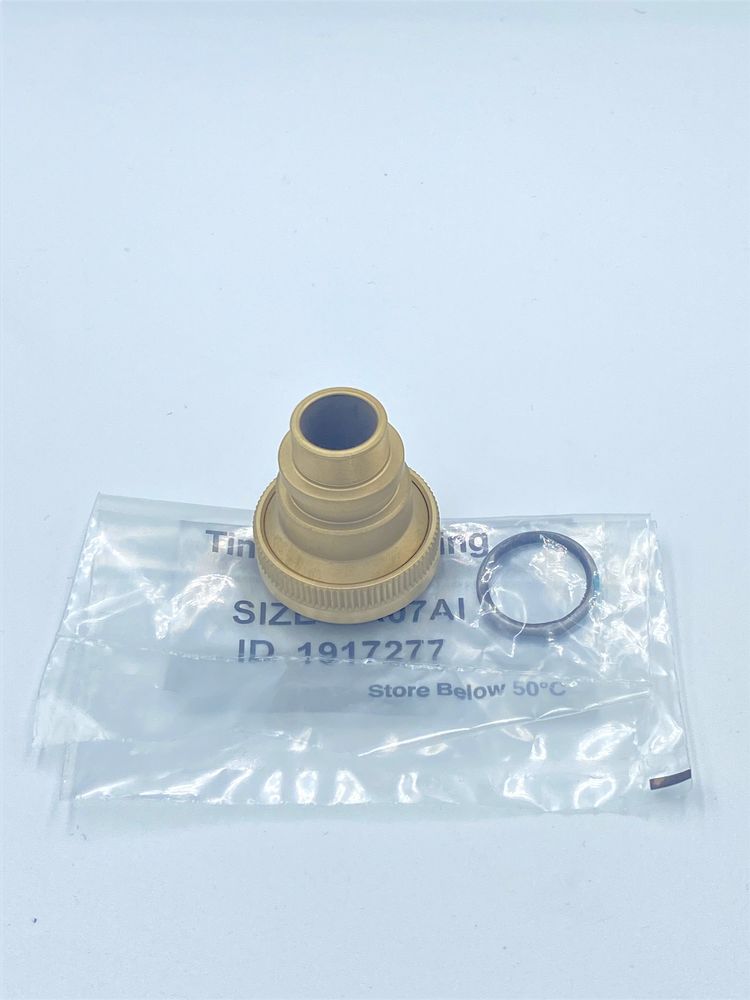

Termination Device Included: TR07AI

Adapter Angle: Straight

Backshell Material: Nickel Aluminum Bronze

Salt Spray Resistance: 1000 Hr

TE Adapter Code: 40

Adapter Entry Size: 7

Adapter Plating Material: Unplated (Shotblast Glass Bead)

Connector Shell Size: 15 , D

Cable Entry Diameter: .01 – .44 in, .2 – 11.1 mm

Cable Diameter Range: .219 – .35 in, 5.6 – 8.9 mm

Termination Device Type: Side-Entry Tinel-Lock Ring , Tinel-Lock Adapter , Tinel-Lock Ring

Operating Temperature Range: -65 – 260 °C, -85 – 500 °F
