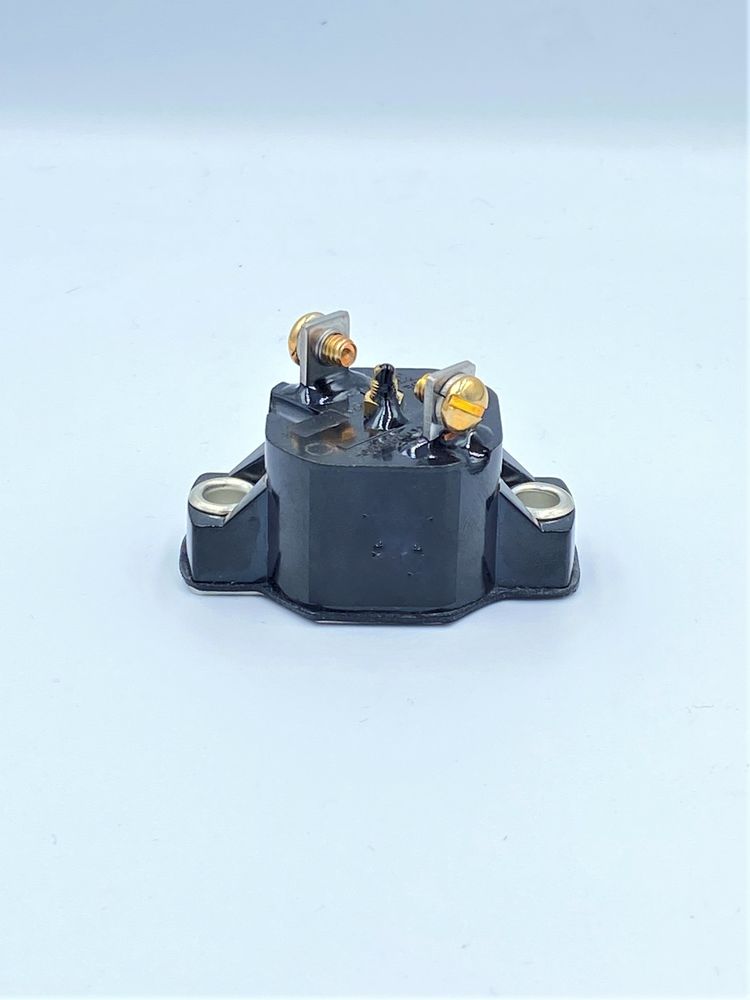

CDA-10, Sensata Klixon, Commercial 10 amp Klixon thermal circuit breaker with auto reset. Ignition protected and sealed. For the harsh environments of truck, bus, off-road, construction, & electric vehicles.
|
PERFORMANCE CHARACTERISTICS
|
|
Calibration : 200% rated current, 77°F (25°C)
|
2 to 10 amps : 20 to 150 seconds
12.5 to 40 amps : 5 to 55 seconds
|
|
Ultimate Trip at 77°F (25°C)
|
Must hold 100%, Must trip 135%
|
|
Endurance
|
Per SAE J553
|
|
Interrupt Current Capacity
|
Per SAE J553 and ABYC E-11
|
|
Vibration
|
10G MIL-STD-202 Method 204, Condition A
|
|
Salt Spray
|
MIL-STD-202 Method 101D (sealed only)
|
|
Dielectric Strength
|
MIL-STD-202 Method 301, 1500VAC min
|
|
Insulation Resistance
|
MIL-STD-202 Method 302, Condition B, 100 MΩ min
|
|
Weight (with mountingnuts)
|
CDM: 48 grams max CDA: 41 grams max CM : 37 grams max CA : 32 grams max
|
FEATURES
- 30VDC or 120VAC, 2 to 40 Amps
- Open and closed construction
- Automatic and manual reset options
- Ignition protected SAE J1171
- Weatherproof SAE J553
- UL Recognized E36869
DESCRIPTION
The KLIXON® C series thermal breakers are designed to protect wiring and meet the harshest environmental requirements. The C series closed construction circuit breakers are weatherproof sealed for protection against moisture, dust, grease, fuel vapors and other harsh environments. The C series breakers are compact, lightweight and designed to interrupt short circuits or overloads, and combine trip-free protection with fast response time. Typical applications are protection of wire cable of accessory circuits, equipment and battery protection in construction and off-road equipment, marine, recreational vehicles (RV’s), mining, agricultural equipment and electric (hybrid) vehicles.
