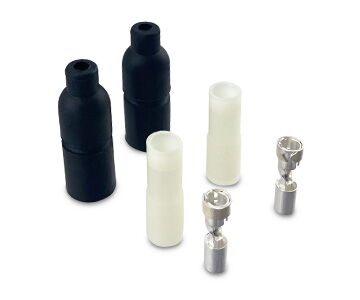

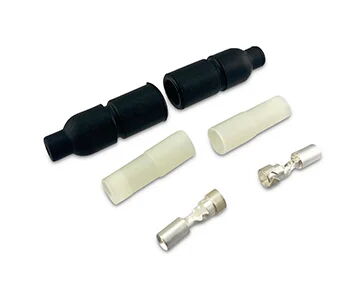

MS27144-2
Connector Kit 16 AWG Male
The MS27144-2 is a 16 AWG "Male" connector that is used on all U.S. military vehicles. It is recommended that only MIL-DTL-13486/1 cable be used for military applications in order to obtain a waterproof assembly. Other types of cable with smaller outer diameters will need to be built up with approved heat shrink sealing to provide a waterproof seal. In addition, to aid in assembling the cable to the connector, the user may apply isopropyl alcohol as an assembly lubricant. NSN: 5935-00-115-2307
