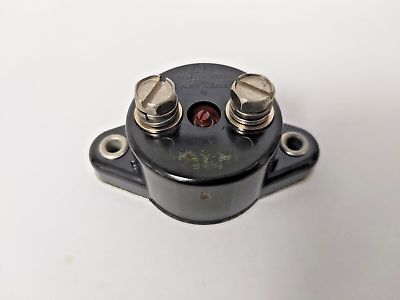

PDLA-120, Sensata Klixon, Thermal 120 amp Circuit Breaker. Precision,sealed and ignition protected. Auto reset. Provides excellent over-current protection for harsh environments.
|
Calibration : 200% rated current, 77°F (25°C)
|
8 to 100 seconds
|
|
Ultimate Trip At 77°F (25°C)
|
Must hold 100%, Must trip 138%
|
|
Endurance
|
Automatic: 2,000 cycles @ 200% rated current Manual: 500 cycles @ 200% rated current
|
|
Interrupt Current Capacity
|
Per SAE J1625 and ABYC E-11
|
|
Vibration
|
10G MIL-STD-202 Method 204, Condition A
|
|
Mechanical Shock
|
100G MIL-STD-202 Method 213, Condition C
|
|
Dielectric Strength
|
MIL-STD-202 Method 301, 1500VAC min
|
|
Insulation Resistance
|
MIL-STD-202 Method 302, Condition B, 100 MΩ min
|
|
Weight (with mounting nuts)
|
PDLM : 129 grams max PDLA : 116 grams max
|
FEATURES
- 30VDC, 35 to 150 Amps
- Sealed assemblies, available in manual and automatic reset options
- Ignition protected & CCC certified
- PDLM meets CID A-A-55571/04 specifications
- PDLA meets CID A-A-55571/07 specifications
DESCRIPTION
The KLIXON® PDL series thermal breakers are designed to meet the harshest environmental requirements. The PDL series breakers are weatherproof for protection against moisture, dust, grease, fuel vapors, and other harsh environments. The PDL series of breakers are designed to interrupt short circuits or overloads and combine trip-free protection with fast response time. The PDL series of breakers can be used in commercial and military vehicles and equipment where more precise ultimate trip characteristics are required.
