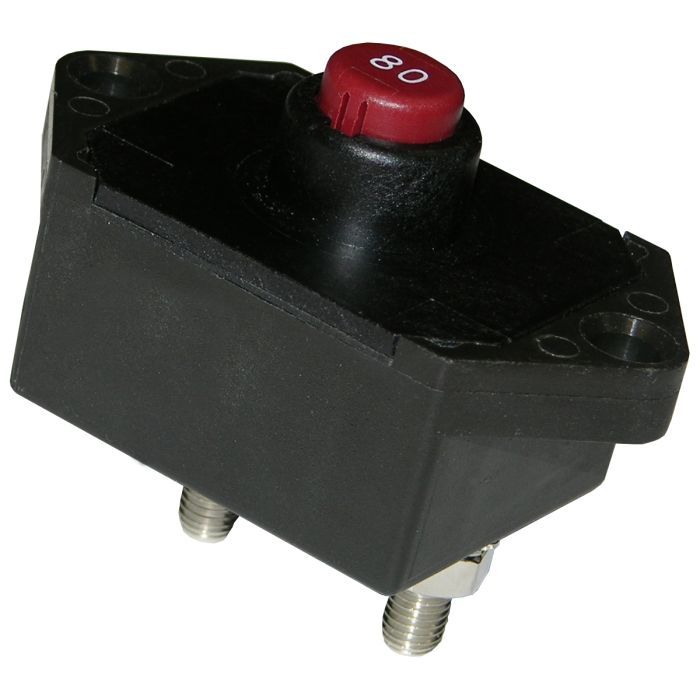

SDLM-90, Sensata Klixon, Thermal 90 amp circuit breaker. Ignition protected and sealed. Manual reset. Over-current protection for harsh environments, vehicle, electric vehicle, battery chargers, marine, etc.
|
PERFORMANCE CHARACTERISTICS
|
|
Calibration : 200% rated current,77°F (25°C)
|
35 to 150 Amps : 8 to 100 seconds
|
|
Ultimate Trip At 77°F (25°C)
|
Must hold 100%, Must trip 135%
|
|
Endurance
|
Per SAE J1625
|
|
Interrupt Current Capacity
|
Per SAE J1625 and ABYC E-11
|
|
Mechanical Vibration
|
Per SAE J1455, 4G’s, 10-2K Hz
|
|
Voltage Breakdown
|
Per SAE J1625 500VAC
|
|
Salt Spray
|
Per SAE J1625, 96 hours
|
|
Voltage Drop
|
Per SAE J1625
|
|
Weight (with mounting nuts)
|
SDLM (A) : 75 grams (71 grams) max SLA : 62 grams max
|
FEATURES
- 30VDC, 35 to 150 Amps
- Open and sealed assemblies, manual and automatic reset options
- Ignition protected
- UL Recognized E69772
DESCRIPTION
The KLIXON® S series thermal breakers are designed to protect wiring and meet the harshest environmental requirements. The sealed circuit breakers are weatherproof for protection against moisture, dust, grease, fuel vapors and other harsh environments. The S series breakers are lightweight and designed to interrupt short circuits or overloads and combine trip-free protection with fast response time. Typical applications are protection of wire and cable of accessory circuits, equipment and battery protection on heavy trucks, buses, construction equipment, off- road vehicles, marine, recreational vehicles (RVs) and electric (hybrid) vehicles, and battery chargers.
The S series is available in both open and sealed body configurations with manual and automatic reset options.
