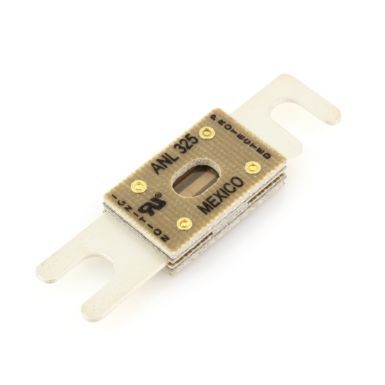

ANL-325, Bussmann non-time-delay low voltage limiter, 325 amps, 80VDC or less, IR 2700A. For use in isolating faults in battery operated systems.
ANL non-time-delay low voltage limiter
|
Catalog numbers
|
(amps)
|
|
|
ANL-35
|
ANL-150
|
ANL-350
|
|
ANL-40
|
ANL-175
|
ANL-400
|
|
ANL-50
|
ANL-200
|
ANL-500
|
|
ANL-60
|
ANL-225
|
ANL-600
|
|
ANL-80
|
ANL-250
|
ANL-675
|
|
ANL-100
|
ANL-275
|
ANL-750
|
|
ANL-125
|
ANL-300
|
|
|
ANL-130
|
ANL-325
|
|
Catalog symbol:
Description:
- Non-time-delay low voltage limiter for use in isolating faults in battery operated systems.
Specifications:
Ratings
- Volts 80Vdc or less
- Amps 35-750A
- IR 2700A
Agency information
- UL Recognized, Guide JFHR2, File E56412
- SAE J1171 ignition protected (35-500A)
- RoHS compliant
Features:
- Element visible through clear window to easily identify open status
Recommended fuse blocks*:
Description Catalog number
1-pole open stud terminalblock with nylon insertedlocknuts 4164
1-pole open stud terminalblock with standard hex nuts 4164-FR
