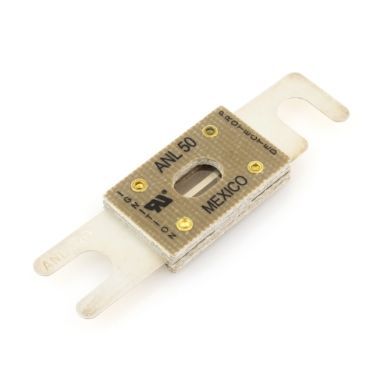

ANL-50, Bussmann, non-time-delay low voltage limiter, 50 amps. 32 VAC, 80 VDC. Isolates faults in equipment systems such as lift trucks and other battery operated systems. See specifications for additional information.
ANL non-time-delay low voltage limiter
|
Catalog numbers
|
(amps)
|
|
|
ANL-35
|
ANL-150
|
ANL-350
|
|
ANL-40
|
ANL-175
|
ANL-400
|
|
ANL-50
|
ANL-200
|
ANL-500
|
|
ANL-60
|
ANL-225
|
ANL-600
|
|
ANL-80
|
ANL-250
|
ANL-675
|
|
ANL-100
|
ANL-275
|
ANL-750
|
|
ANL-125
|
ANL-300
|
|
|
ANL-130
|
ANL-325
|
|
Catalog symbol:
Description:
- Non-time-delay low voltage limiter for use in isolating faults in battery operated systems.
Specifications:
Ratings
- Volts 80Vdc or less
- Amps 35-750A
- IR 2700A
Agency information
- UL Recognized, Guide JFHR2, File E56412
- SAE J1171 ignition protected (35-500A)
- RoHS compliant
Features:
- Element visible through clear window to easily identify open status
Recommended fuse blocks*:
Description Catalog number
1-pole open stud terminalblock with nylon insertedlocknuts 4164
1-pole open stud terminalblock with standard hex nuts 4164-FR
