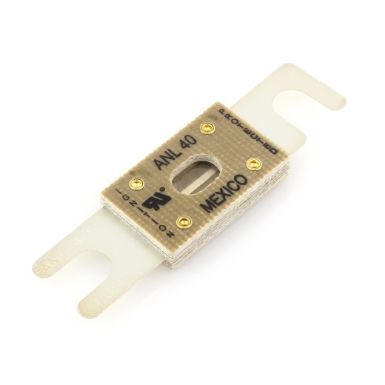

ANL Non-Time-Delay Low Voltage Limiter
ANL Non-Time-Delay Low Voltage Limiter
| Catalog Numbers |
Amps |
Catalog Numbers |
| ANL-35 | ANL-150 | ANL-350 |
| ANL-40 | ANL-175 | ANL-400 |
| ANL-50 | ANL-200 | ANL-500 |
| ANL-60 | ANL-225 | ANL-600 |
| ANL-80 | ANL-250 | ANL-675 |
| ANL-100 | ANL-275 | ANL-750 |
| ANL-125 | ANL-300 | |
| ANL-130 | ANL-325 | |
Catalog Symbol:
• ANL-(amp)
Description:
• Non-time-delay low voltage limiter for use in isolating faults in battery operated systems.
Specifications:
- Volts 80Vdc or less
- Amps 35-750A
- IR 2700A
Agency Information:
- UL Recognized, Guide JFHR2, File E56412
- SAE J1171 ignition protected (35-500A)
- RoHS compliant
Features:
• Element visible through clear window to easily identify open status.
Recommended Fuse Blocks:
| Description |
Catalog Number |
| 1-pole open stud terminal block with nylon inserted locknuts |
4164 |
| 1-pole open stud terminal block with standard hex nuts |
4164-FR |
