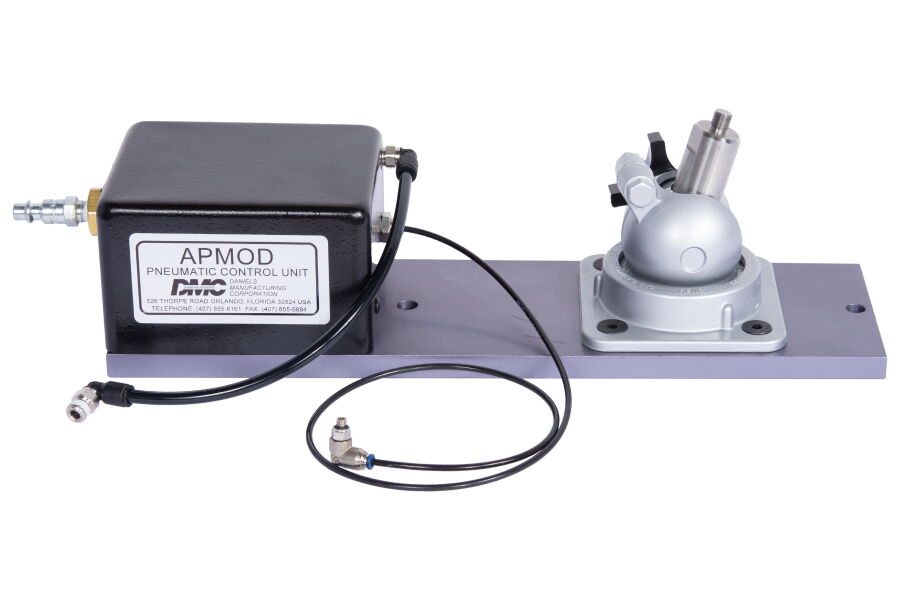

The APMOD-WA22-RK, Retro Fit Kit automatic upgrades WA22 and WA22P pneumatic tools to automatic positioner crimp systems. This allows for simplier operation so that the pneumatic crimp tool can be actuated without pressing a trigger or using a foot pedal.
The APMOD acutates the tool when the operator correctly places a contact and wire into the tool. First, the operator loads the contact into the tool so the wire barrel remains visible. Then, the wire is inserted ensuring all strands of the wire are inside the wire barrel. After proper insertion, slight pressure on the wire pushes the contact into the automatic positioner which initiates the crimp.

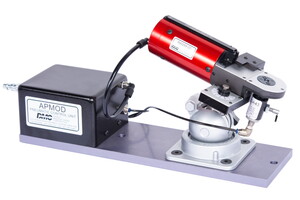

Picture shows pneumatic tool as example. Tool not included in retro fit kit.
The following part numbers are used to purchase the complete automatic position crimp system that includes the crimp tool.
WA22QA, for the WA22
WA22PQA, for the WA22P
WA27FQA, for the WA27F
