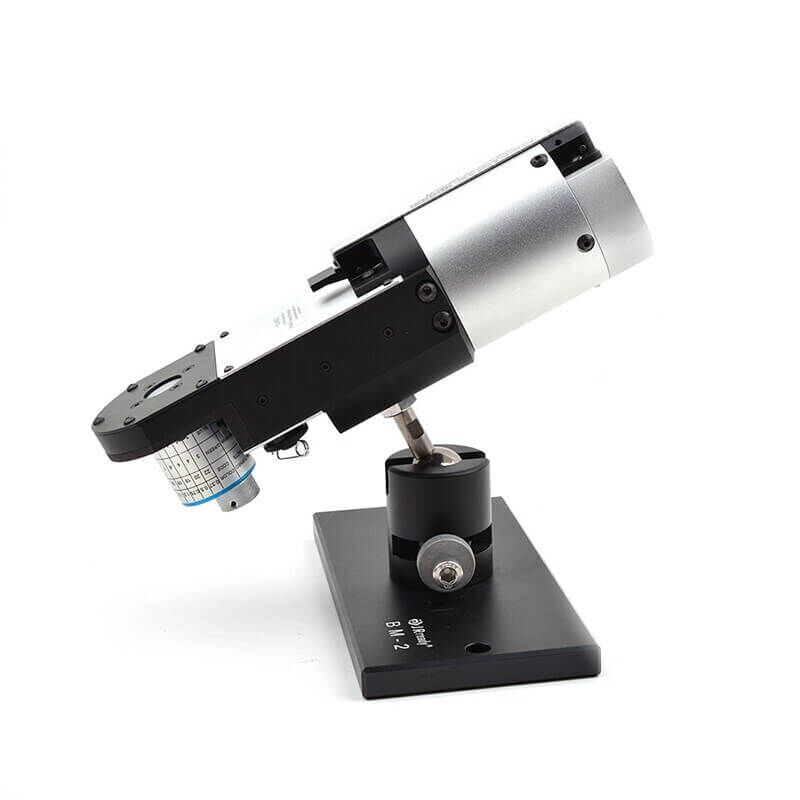

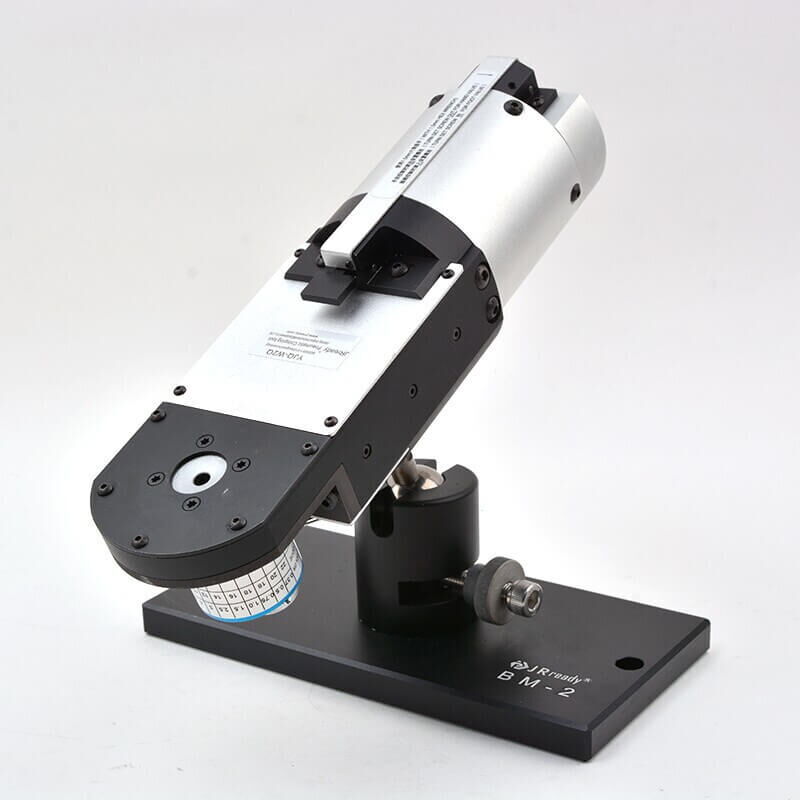

- The kit includes YJQ-W2Q pneumatic crimping tool,TH531-E positioner,PC-SUITE1 air control kit,BM-2 adjustable base mount and TL01G removal tool
- YJQ-W2Q is compatible with the M22520/2-01 which is widely used for the crimping of wires and contacts in electronic connectors
- TH531-E positioner ensures the accuracy and consistency of the crimp position. The positioner can be rotated to adjust the crimp position. Suitable for 16A Sockets & Pins in Han E series connectors.
- TL01G removal tool is used to remove round contacts in HARTING, WAIN, TE Han E series connectors without any damages to the electronic connectors.
- The tool kit is suitable for connectors of fields in mechanical, electrical, and digital interface for 12-22 AWG.

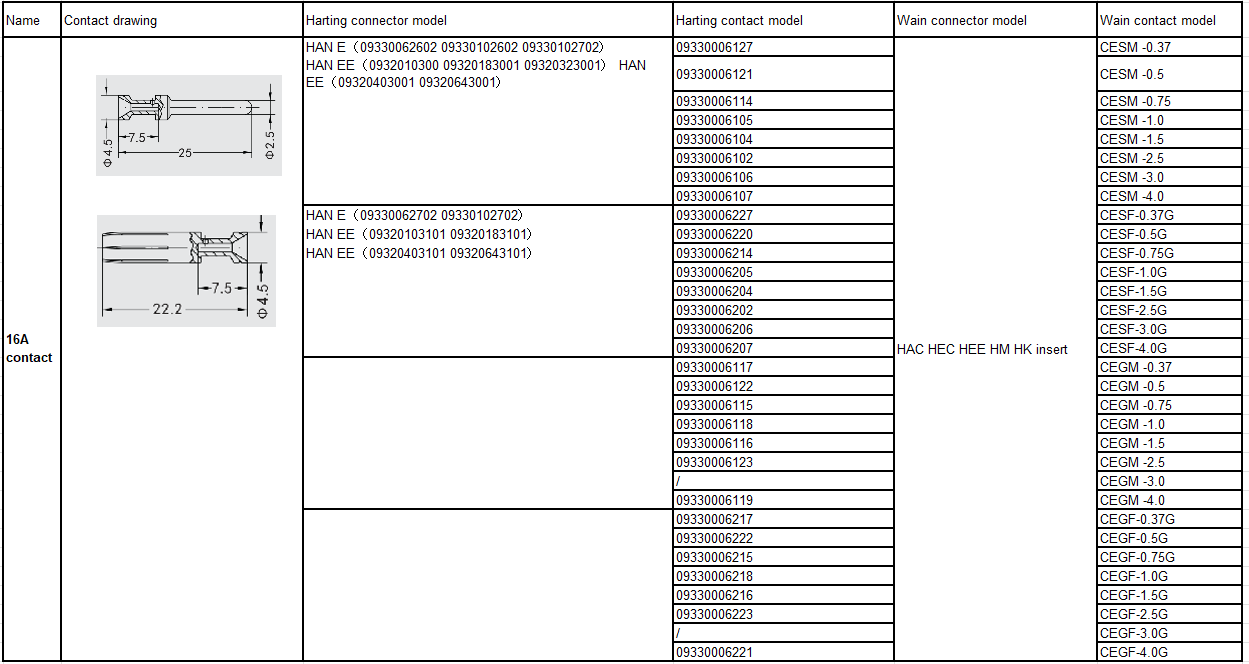

Application
| Name |
Contact drawing |
Harting connector model |
Harting contact model |
Wain connector model |
Wain contact model |
| 16A contact |
|
HAN E（09330062602 09330102602 09330102702）
HAN EE（0932010300 09320183001 09320323001） HAN EE（09320403001 09320643001） |
09330006127 |
HAC HEC HEE HM HK insert |
CESM -0.37 |
| 09330006121 |
CESM -0.5 |
| 09330006114 |
CESM -0.75 |
| 09330006105 |
CESM -1.0 |
| 09330006104 |
CESM -1.5 |
| 09330006102 |
CESM -2.5 |
| 09330006106 |
CESM -3.0 |
| 09330006107 |
CESM -4.0 |
HAN E（09330062702 09330102702）
HAN EE（09320103101 09320183101）
HAN EE（09320403101 09320643101） |
09330006227 |
CESF-0.37G |
| 09330006220 |
CESF-0.5G |
| 09330006214 |
CESF-0.75G |
| 09330006205 |
CESF-1.0G |
| 09330006204 |
CESF-1.5G |
| 09330006202 |
CESF-2.5G |
| 09330006206 |
CESF-3.0G |
| 09330006207 |
CESF-4.0G |
| |
09330006117 |
CEGM -0.37 |
| 09330006122 |
CEGM -0.5 |
| 09330006115 |
CEGM -0.75 |
| 09330006118 |
CEGM -1.0 |
| 09330006116 |
CEGM -1.5 |
| 09330006123 |
CEGM -2.5 |
| / |
CEGM -3.0 |
| 09330006119 |
CEGM -4.0 |
| |
09330006217 |
CEGF-0.37G |
| 09330006222 |
CEGF-0.5G |
| 09330006215 |
CEGF-0.75G |
| 09330006218 |
CEGF-1.0G |
| 09330006216 |
CEGF-1.5G |
| 09330006223 |
CEGF-2.5G |
| / |
CEGF-3.0G |
| 09330006221 |
CEGF-4.0G |
Removal Instruction
Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
