- It is is widely used for the crimping of wires and contacts in both military and proprietary programs
- Compatible with hand crimp tool YJQ-M300 ACT-M300

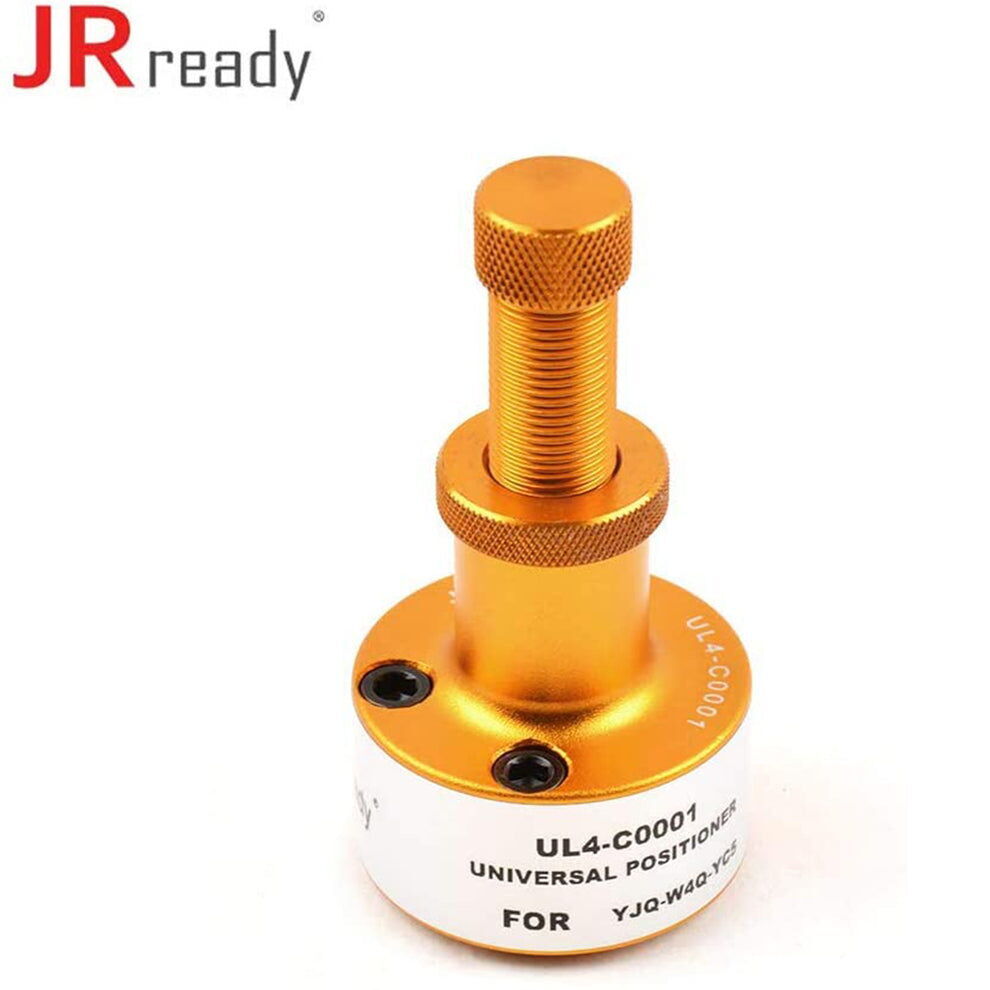

- UF4-C001:Adjusting screw and lock nut are respectively used in length adjustment and nut lock
- Air control system is a combination of air control components which cyclically controlled by foot value

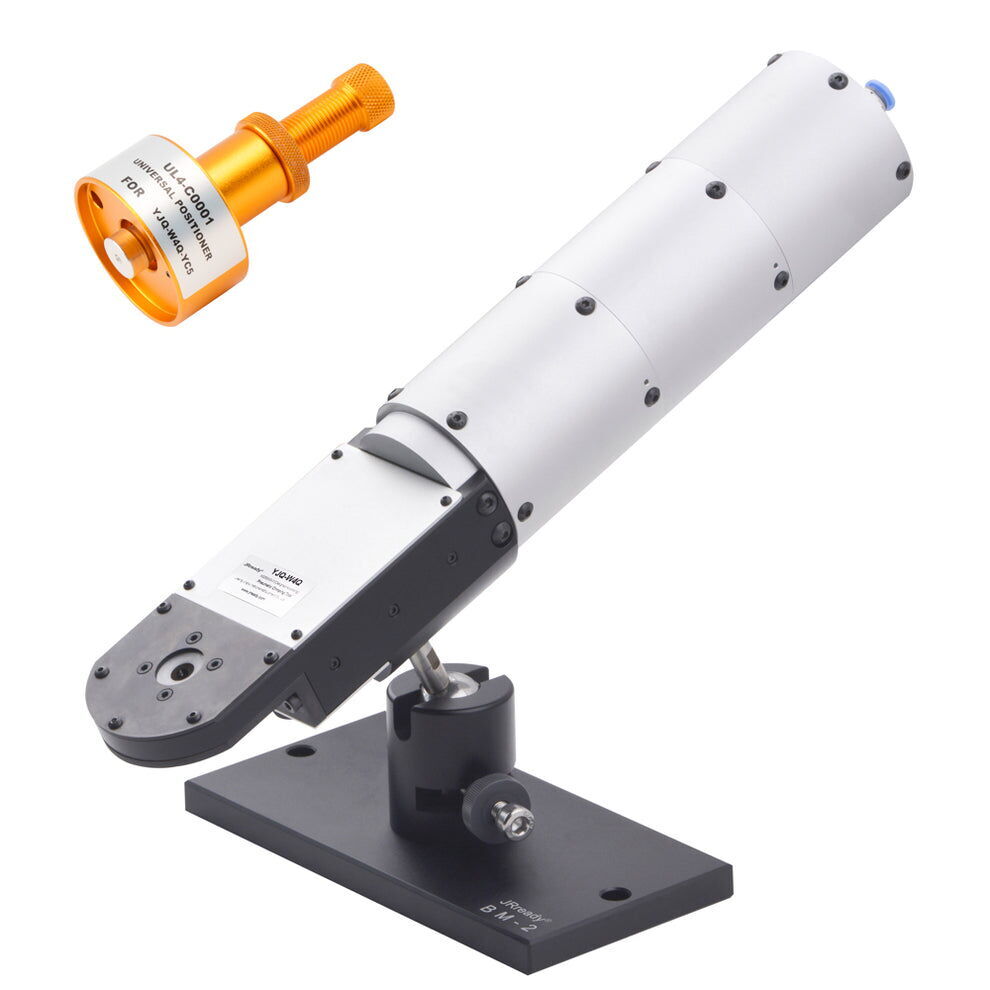

- Adjustable bench mount is quick and easy positioning and unlocking,multi-angle rotation, 360-degree adjustment in the horizontal direction
FEATURES:
● Productivity (It can crimp 30-40 contacts per minute,High production)
● Material of Mould Steel (Good Durability & Good Anti-deformation & Good appearance & Anti-rust）
● Four-indent Crimp Tool (Crimp tension is 1.3 times that of the hexagonal crimp, more stable & more reliable)
● 8 Selector Numbers（Adjustable crimping ranges in different selector number, more convenient for wider applications）
SPECIFICATIONS:
● Material: Mould Steel
● AWG: 6-14AWG (13.3-2.075mm²)
● Air Supply & Working Air Pressure (Bar): 5.5-8.3
● Dimension (mm): 307.5*70.5*69.3

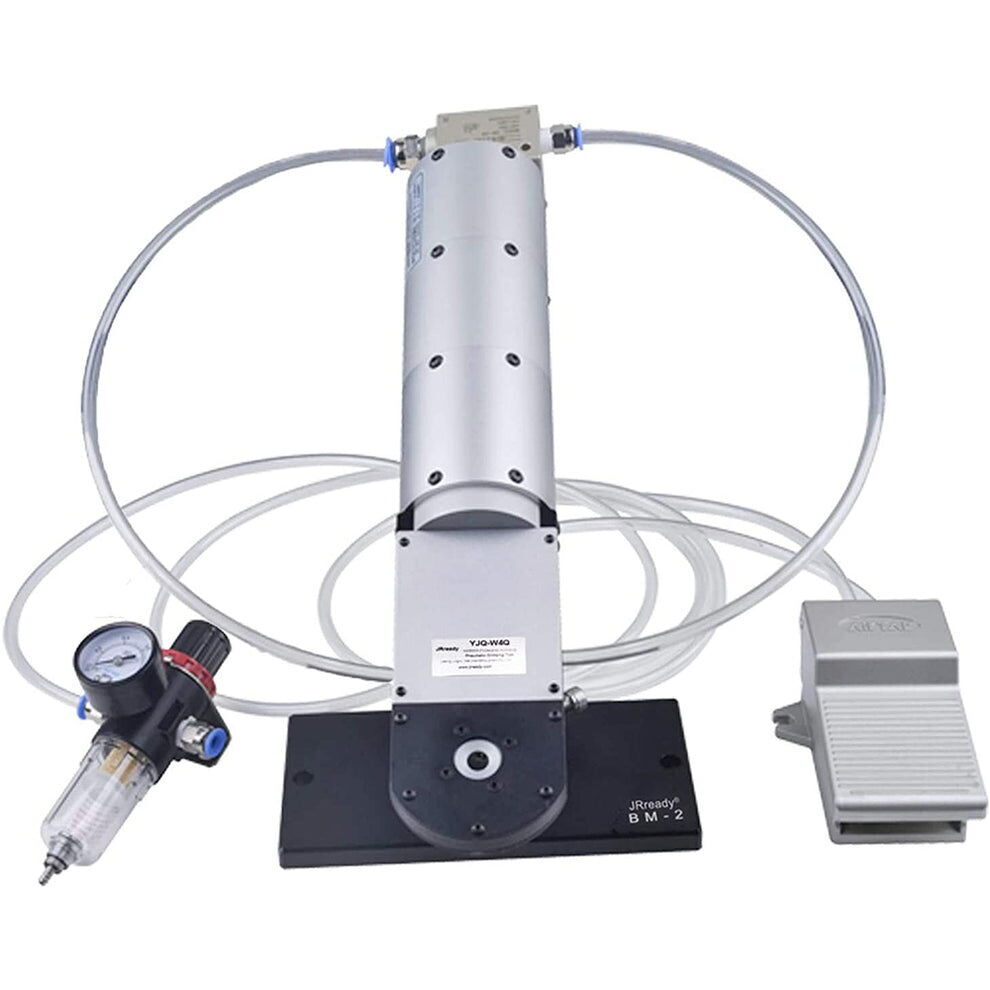

PACKAGE INCLUDED:
1 × Pneumatic Crimping Tool YJQ-W4Q
1 × UF4-C001 Positioner
1 × BM-2 Adjustable Bench Mount
1 × PC-SUITE2 Air Control System(foot value, regulating value, exhaust valve, and air pipes)
