Stok Kodu :0005458

ST5136 Remove Tool kit Designing Refers to MIL Standard and M81969 for Contact/Pin/Socket/Terminal in Electronic Connector

$ 200,00 + KDV
$ 200,00 + KDV
Stok Sayısı :
4
Model# :
JR READY
Ürün Barkodu :
KDV Hariç :
$ 200,00 + KDV
Fiyatlarımıza KDV dahil değildir
Lütfen güncel stok bilgisi ve fiyat için mail atınız.


ST5136 JRready DAK12B M81969 17-05 DAK16B M81969 17-04 DAK20B M81969 17-03 Installing Tool for Contact Connector

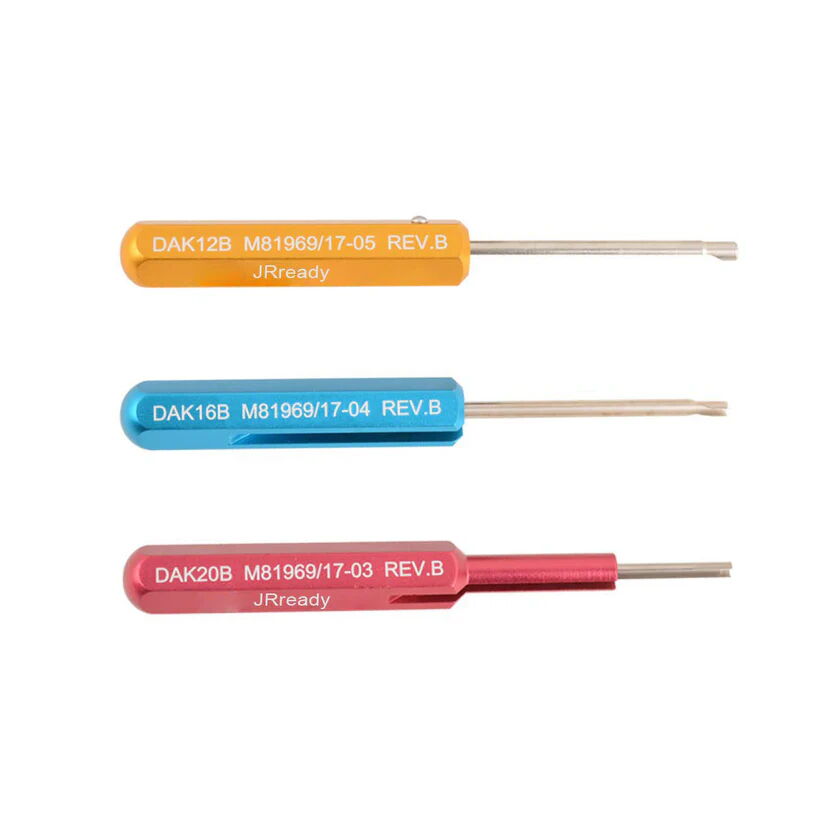

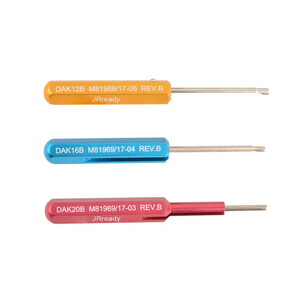

  • Package includes DAK12B & DAK16B & DAK20B installing tool kit

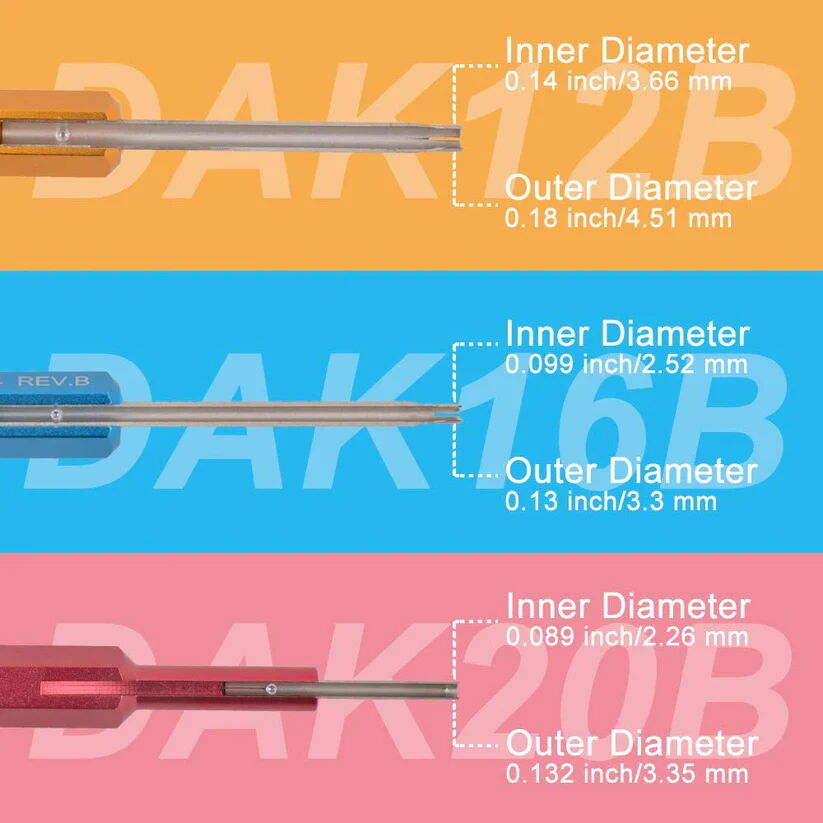

  • DAK12B:Designed according to MIL-C-81969/17-05 REV.B;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
  • DAK16B:Designed according to MIL-C-81969/17-04 REV.8;A small slot of 0.5mm (width)* 4.9mm (length) on installing rod ensures enough tensile force to install contact into electronic connectors easily
  • DAK20B:Designed according to MIL-C-81969/17-03 REV.B;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily

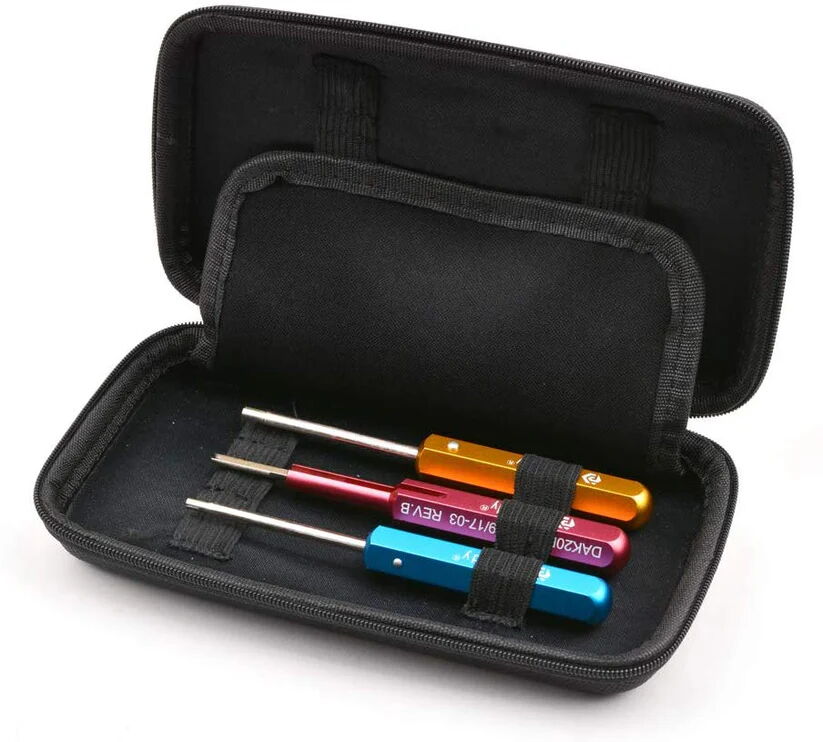

  • Small size, convenient to carry,good choice for outdoor using

Package including:
1 * DAK12B
1 * DAK16B
1 * DAK20B


DAK12B Applications


Connector Model:MIL-DTL-26482 series 1 MIL Standard: M39029/31-234 M39029/32-253
Connector Model:MIL-DTL-26500 MIL Standard: M39029/31-235 M39029/32-254
Connector Model:MIL-DTL-26518 CLASSR MIL Standard: M39029/31-235 M39029/32-254
Connector Model:MIL-C-81703 CLASSR series 2 MIL Standard: M39029/31-234 M39029/32-253
Connector Model:MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-204,205,206 PIN CONTACT
Connector Model:MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-207,208,209 SKT CONTACT
Connector Model:MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT
Connector Model:MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT


DAK16B Applications
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2


DAK20B Applications
Connector Model:MIL-DTL-26482 SERIES 1
Connector Model:MIL-DTL-26500
Connector Model:MIL-DTL-26518 CLASSR
Connector Model:MIL-C-81703 CLASSR SERIES 2


Installing Instruction


Step 1: Prepare the tool & put the crimped contact into the tool.
Step 2: Adjust the crimped contact to the right position.
Step 3: Push the crimped contact gently until it reaches the right position.
Step 4: Remove the tool out.
