Feature:
-

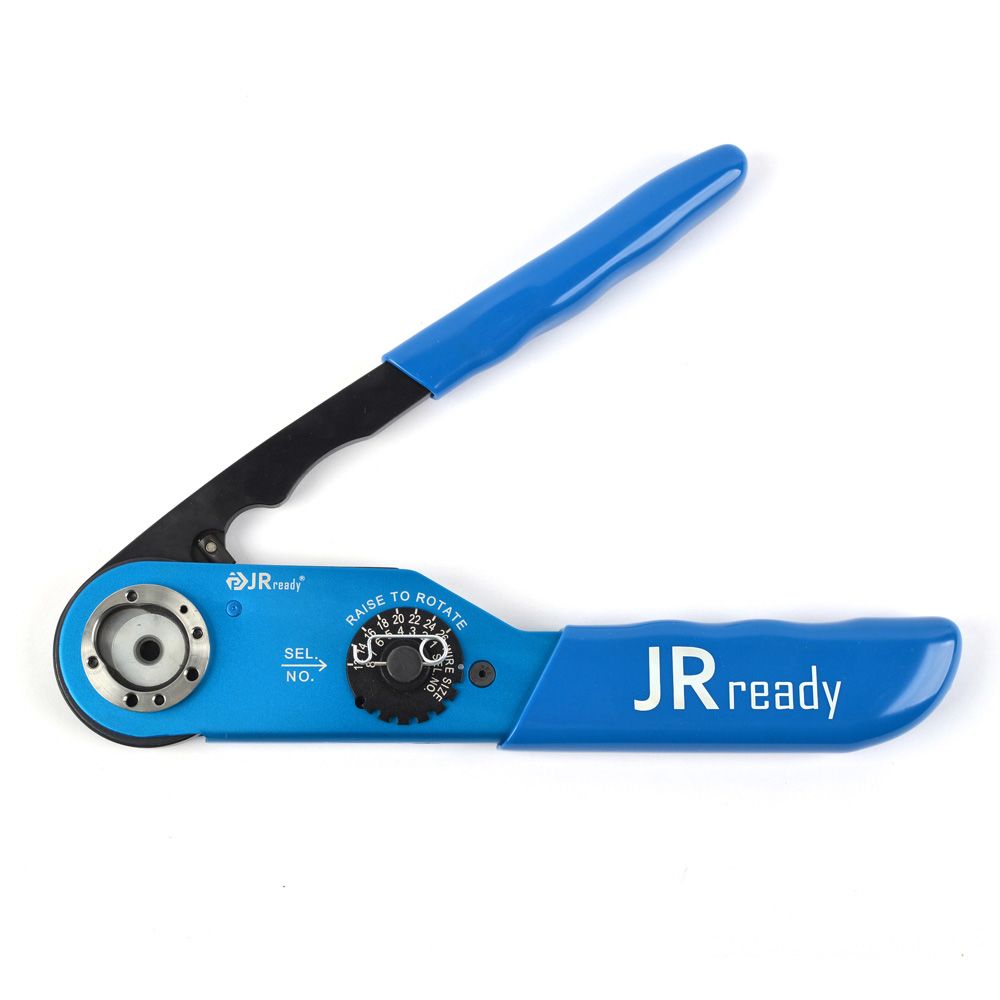

The kit included: NEW-ASF1(Hand Crimp Tool) & M22520/1-02 & M22520/1-04 (Turret Head)
-
NEW-ASF1 is compatible with the M22520/1-01 which is widely used for the crimping of wires and contacts in electronic connectors.
-
M22520/1-02 & M22520/1-04 Turret Head: There is no need to change the positioning device for crimping different MIL standard contacts, just rotate the positioning core.
JReady NEW PRODUCT: NEW-ASF1
HIGH-QUALITY CRIMP:
Gives a MilStandard 8 impression crimp, which assures maximum tensile strength with almost every closed barrel contact
This Wire Crimper Uses Camouflage Blue, the pattern of each Crimper is different when it leaves the factory, to ensure that the Crimper you receive are unique !
PROFESSIONAL CRIMPER:
Designed according to M22520/1-01 and AS22520/1-01;
The cycle controlled precision ratchet assures consistently accurate crimps every time

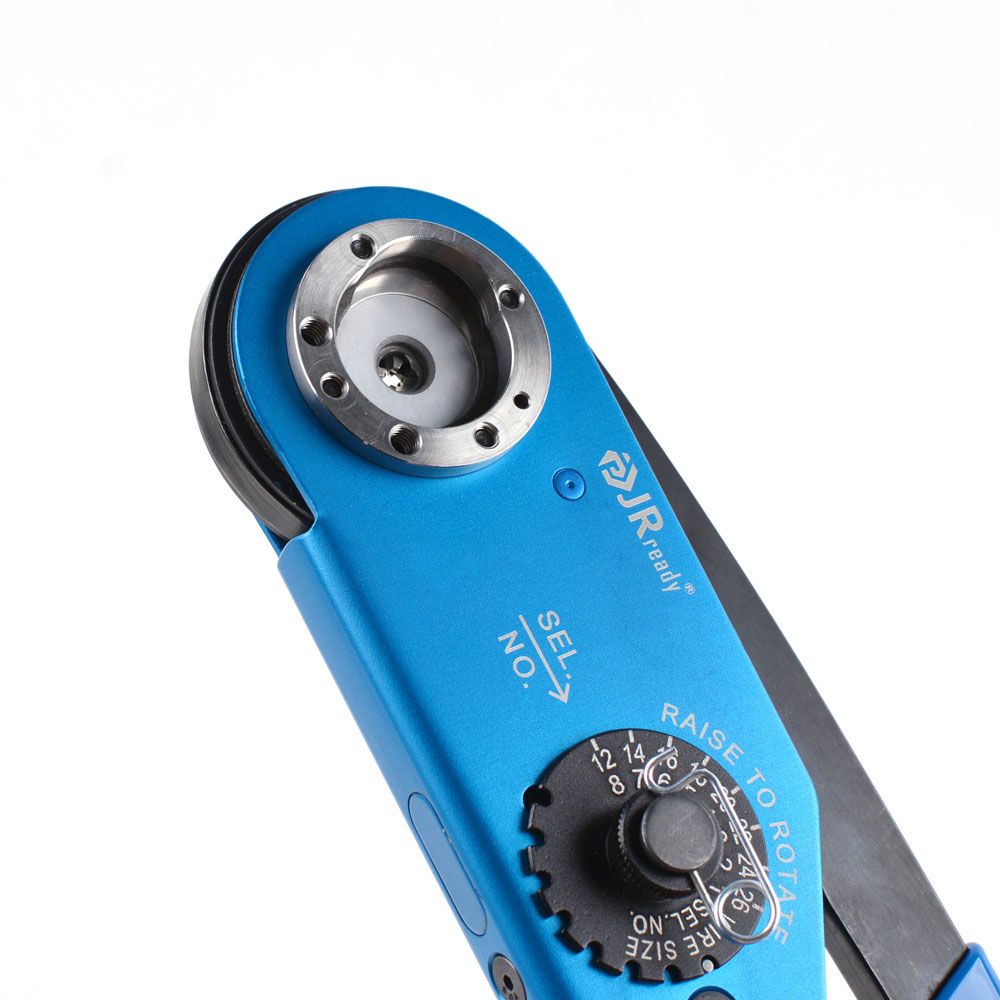

8 POSITION SELECTOR KNOB:
Allows operators to control the crimp depth conveniently,selector number 1-8 corresponds to wire 26-12 AWG, please remove the locking pin carefully before using

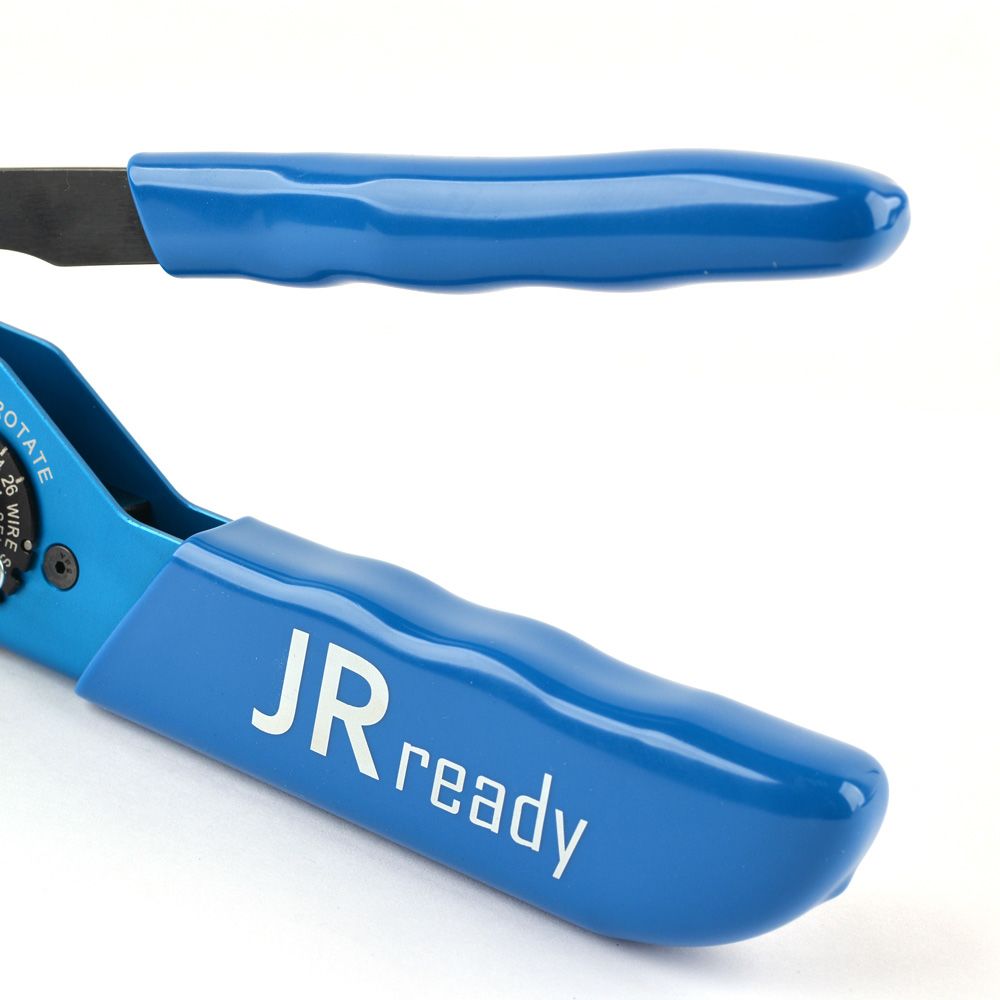

NEW HANDLE DESIGN:
Special wave shaped rubber grips, comfortable hand feeling and not easy to slide off
STRUCTURE UPGRADE:
The upgraded solid structure can provide reliable crimping guarantee.
