ST5135 DRK12B M81969 19-02 DRK16B M81969 19-01 DRK20B M81969 17-03 Removal Tool Kit for Contact Connector

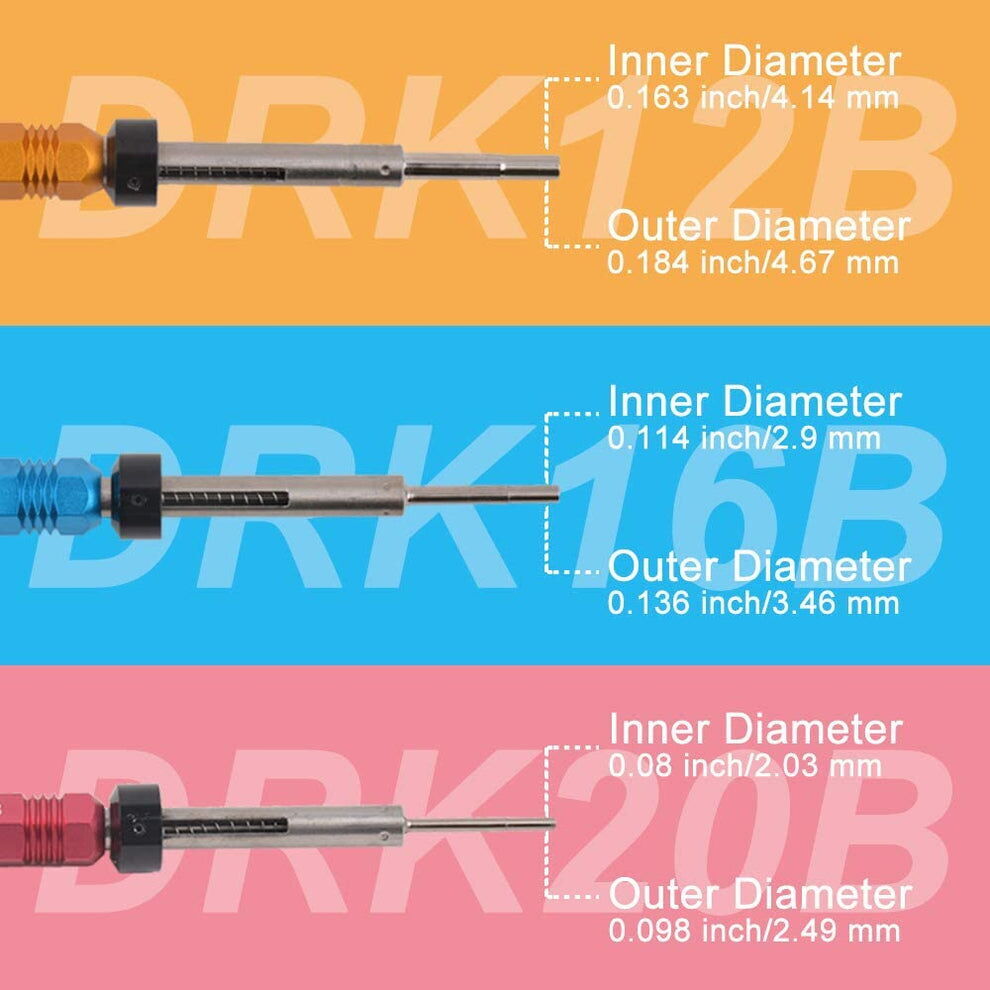

- Package includes DRK12B & DRK16B & DRK20B removal tool kit
- DRK12B:Designed according to MIL-C-81969/19-02 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
- DRK16B:Designed according to M81969/19-01 REV.8;The brace pipe has an ejector pin to facilitate the removal of contacts
- DRK20B:Designed according to MIL-C-81969/19-06 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
- Small size, convenient to carry，good choice for outdoor using

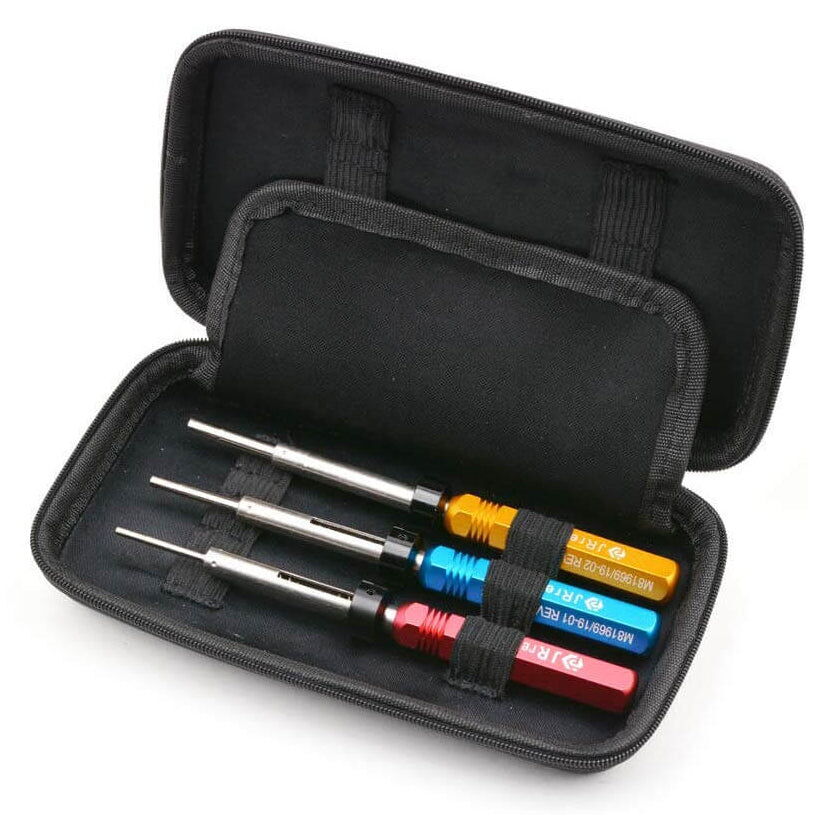

Package including:
1 * DRK12B
1 * DRK16B
1 * DRK20B
DRK12B Applications
Connector Model：MIL-DTL-26482 series 1 MIL Standard: M39029/31-234 M39029/32-253
Connector Model：MIL-DTL-26500 MIL Standard: M39029/31-235 M39029/32-254
Connector Model：MIL-DTL-26518 CLASSR MIL Standard: M39029/31-235 M39029/32-254
Connector Model：MIL-C-81703 CLASSR series 2 MIL Standard: M39029/31-234 M39029/32-253
Connector Model：MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-204,205,206 PIN CONTACT
Connector Model：MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-207,208,209 SKT CONTACT
Connector Model：MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT
Connector Model：MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT
DRK16B Applications
Connector Model：MIL-DTL-26482 SERIES 1
Connector Model：MIL-DTL-26500
Connector Model：MIL-DTL-26518 CLASSR
Connector Model：MIL-C-81703 CLASSR SERIES 2
DRK20B Applications
Connector Model：MIL-DTL-26482 SERIES 1
Connector Model：MIL-DTL-26500
Connector Model：MIL-DTL-26518 CLASSR
Connector Model：MIL-C-81703 CLASSR SERIES 2
Removal Instruction
