Qualification	Mil-Spec/AS Qualified
Crimp Tool Type	Positioners
Positioner	TH

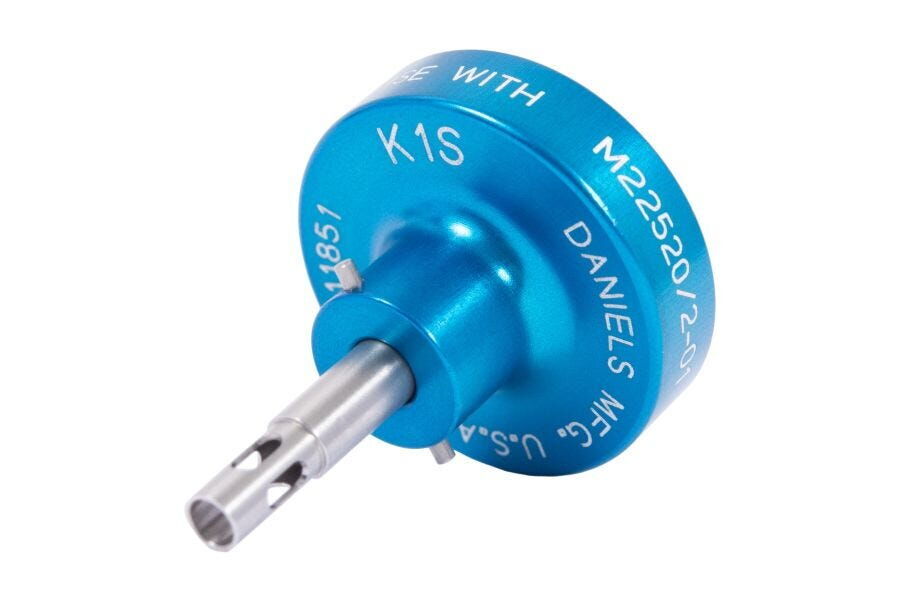

K1S® is qualified to MIL-DTL-22520/2* and AS22520/2* This positioner is used with the M22520/2-01, AFM8® tool frame and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position. Can also be used with these DMC® Crimp Tools: WA22™ Pneumatic Crimp Tool Frame AFME8B Battery Crimp Tool Frame

Used to locate crimps on size 20 pin and socket contacts installed in MIL-C-5015, MIL-C-26482, MIL-C-26500, and MIL-C-83723 circular connectors. Contact numbers: MS3192-20-20, MS3193-20-20, MS24254-20P, MS24254-20S, MS18134-20, MS18136-20, M39029/4-110, M39029/5-115, M39059/9-132, M39059/9-133, M39059/9-134, M39059/9-135, M39059/9-136, M39029/10-138, M39029/10-139, M39029/10-140, M39029/10-141, M39029/10-142, M83723/33-20, M83723/34-20, M39029/31-223, M39029/31-224, M39029/31-225, M39029/31-226, M39029/31-227, M39029/31-240, M39029/31-241, M39029/31-448, M39029/32-242, M39029/32-243, M39029/32-245, M39029/32-246, M39029/32-259, M39029/32-260, M39029/32-449, M39029/92-532
