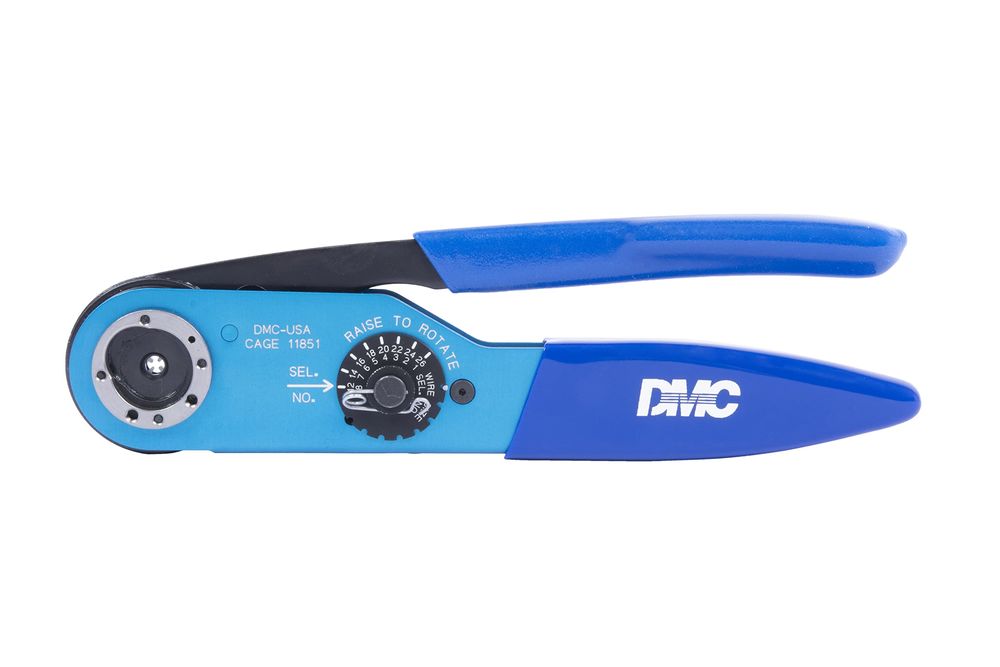

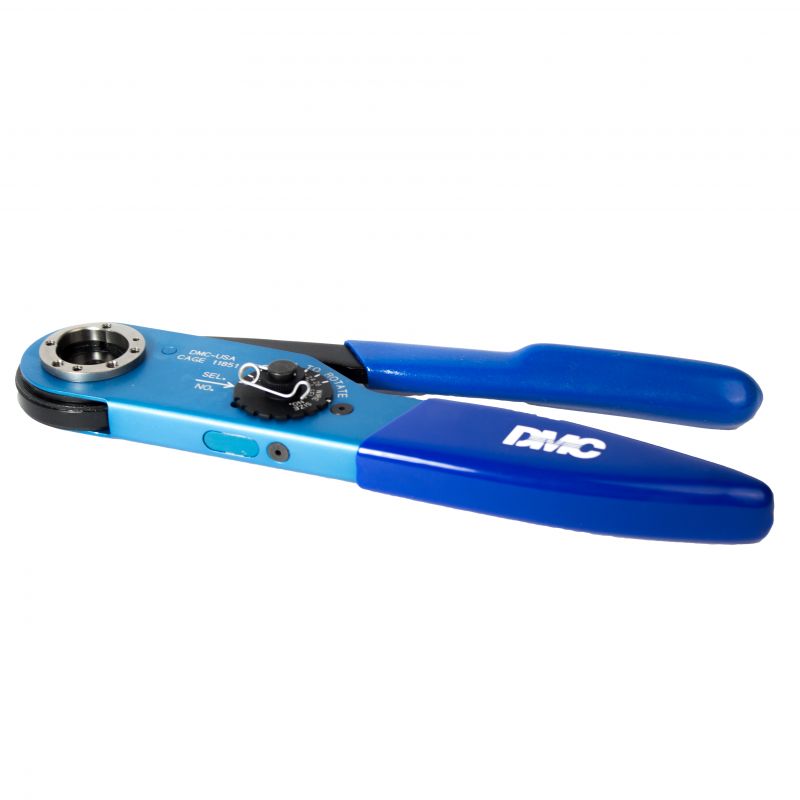

Daniels Manufacturing Corporation's® AF8® is qualified to MIL-DTL-22520/1* and AS22520/1* and has virtually limitless application within the specified wire range of 12 through 26 AWG. Over a thousand turret heads are available to adapt the tool frame to your specific military or proprietary contact/wire combination. The 8-impression crimp, which is standard in the AF8, assures absolute maximum tensile strength with almost every closed barrel contact. Special indent configurations and gaging are available upon request.
For proper operation, the tool must be mated with one of the following optional accessories: a military standard or non-military turret head (TH-XXX Part No. Series), a military standard or non-military positioner (TP-XXX Part No. Series), or an adjustable head (Part No. UH2-5). This is done simply by orienting the head in the keyed position, and by tightening the hex socket screws provided as part of the head.
The precision ratchet controls the cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It's like having a quality control inspector at every workstation. Positive crimp depth is controlled by an 8-position selector knob conveniently located on the tool frame. The operator simply dials the desired step for the wire being used. This setting can be secured by the use of a locking pin or safety wire.
A permanent data plate is affixed to all turret heads and positioners. This plate lists specific contact part numbers, the corresponding position color code (for 3-position turret heads), and suggested selector depth settings for the wire size being used.
The AF8 is approximately 9.75" x 2.5" x 1.25" and weighs 15 oz.
Periodic gaging is recommended to ensure accurate calibration. This can be done easily by setting the tool selector knob to position #4, and checking indenter closure with the M22520/3-1 Go/No-Go gage (DMC® part no. G125). For a complete set of non-Mil-Spec Go/No Go gages for all selector settings, see DMC part no. 88-100.
Other than keeping the unit clean and properly stored when not in service, no operator maintenance is required. DMC® offers complete factory service by knowledgeable technicians within a reasonable turnaround time. Complete instructions concerning the use, care, and warranty are supplied with each tool.
The battery-powered version of this tool is the AFE8B.
The pneumatic version of this tool is the WA27F™.
The DMC1186 tool kit contains the AF8 tool frame, tool gage, and all mil-spec positioners and turret heads.
For a complete listing of AS22520 to DMC® Tooling, please click here.
