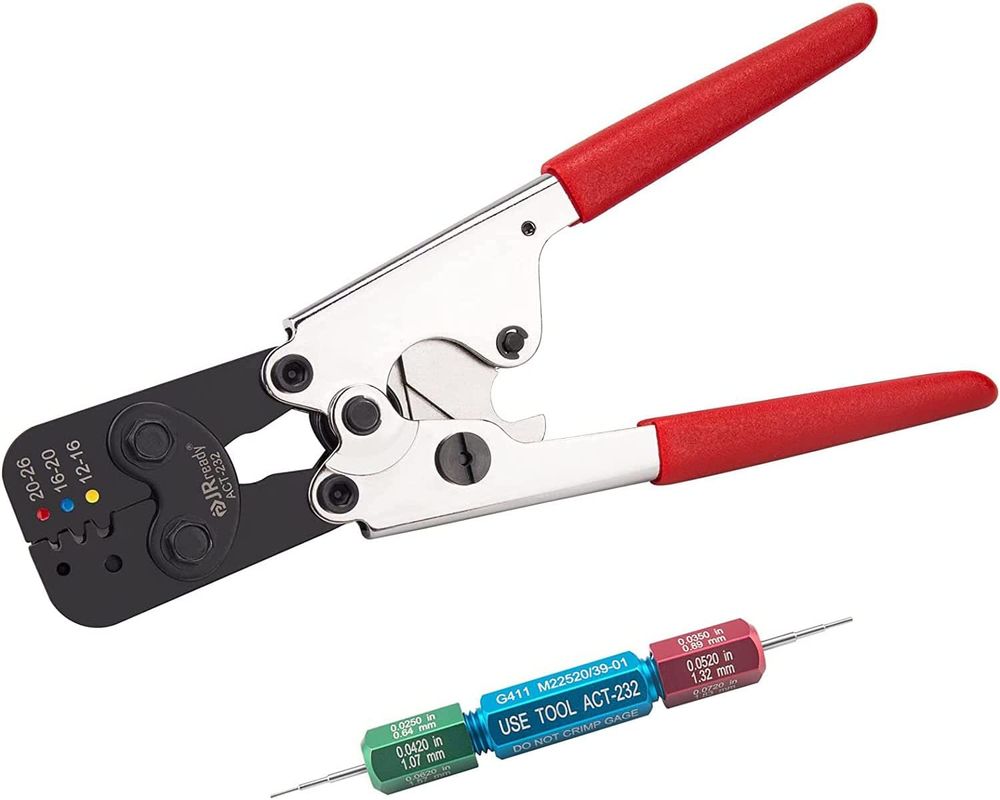

ACT-232(RED) (M22520/37-01 AD-1377 Equivalent) Hand Crimp Tool

Design according to M22520/37-01

Product Specifications:

Size: 213mm (9”)

Weight: 350g

Material: high carbon steel (Plier Head)

Hardness: HRC45-50 (Plier Head)

Surface Treatment: Black Oxidation (Plier Head); Electroplated Nickel (Handle)

Applications:

Suitable for crimping M81824/1,6,7,8,9,10,11,13,14 series heat shrinkable splices

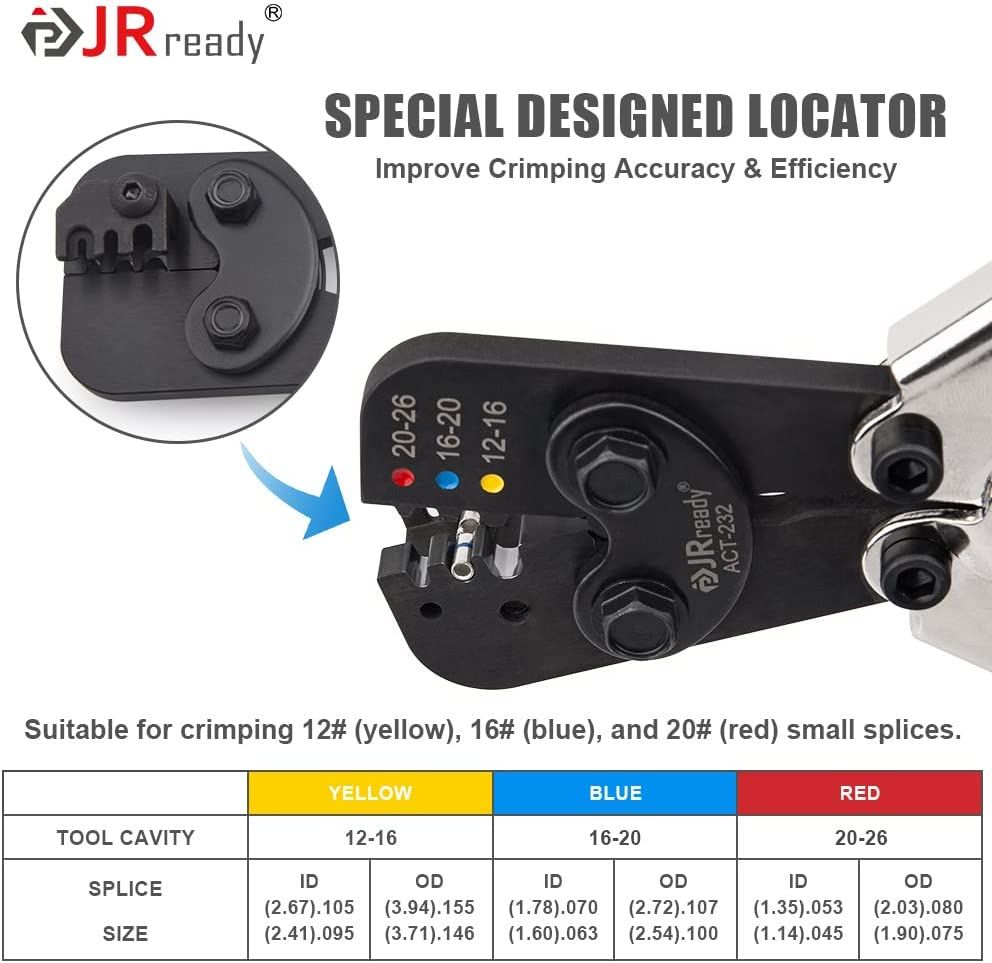

Suitable for crimping 12# (yellow), 16# (blue), and 20# (red) small splices

Features:

Built-in ratcheting crimp cycle system ensures consistency of each crimp stroke and avoids premature release of the crimp indenters

Preset precise crimp depths and crimp shapes provide optimized mechanical and electrical performance

The internal cavity is polished to maximize operational reliability

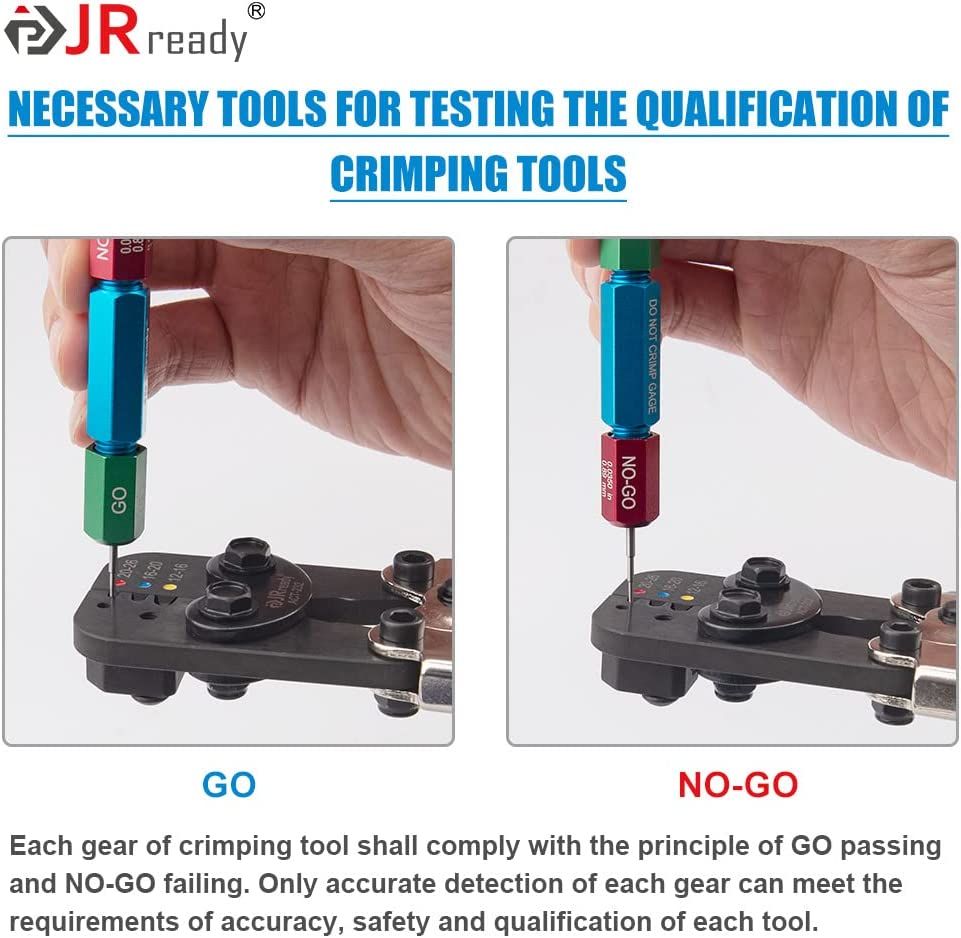

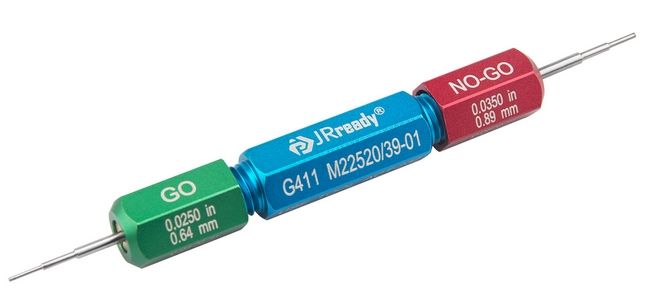

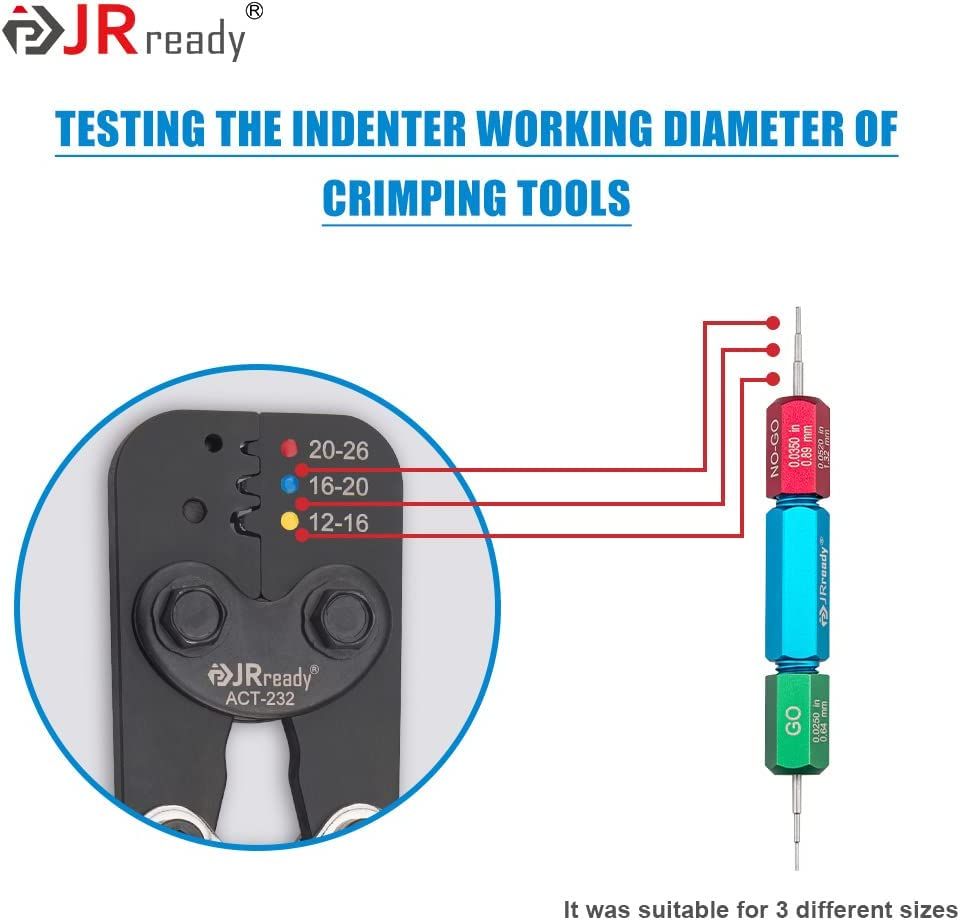

 G411 Go-nogo Gage

Design according to M22520/39-01

Use with ACT-232 Crimp Tool
