Adjustable Crimp Tool for Cable Assembly 20-32AWG
- Crimp Style: 4-way 8-impression crimping
- Wire range: 20-32AWG (0.52mm²-0.032mm²)
- Applications: Suitable for crimping round contacts of MIL standard, Harting, Hardin, Wain, TE connectors

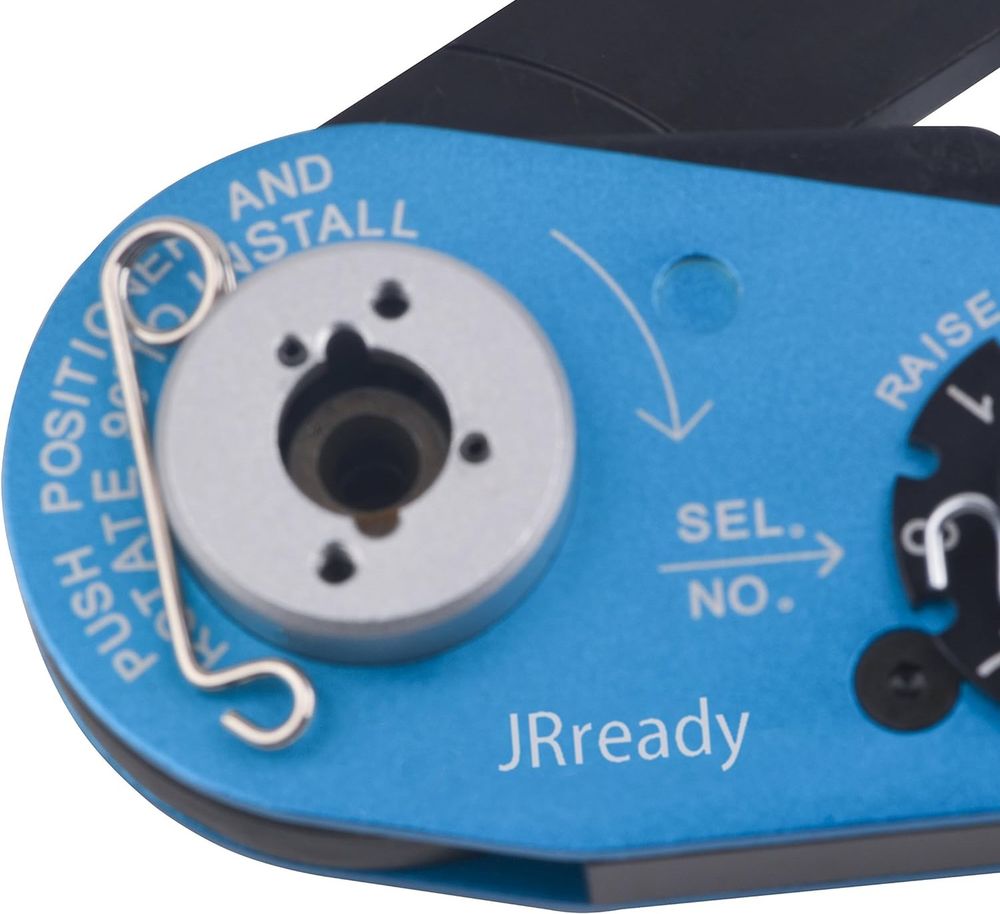

- Positioner: Adapts K,KA,SK2/2,HD series positioners
- YJQ-W1A is compatible with the M22520/2-01 which is widely used for the crimping of wires and contacts in electronic connectors
- FEATURES:
● Designed according to MIL-C-22520/2-01

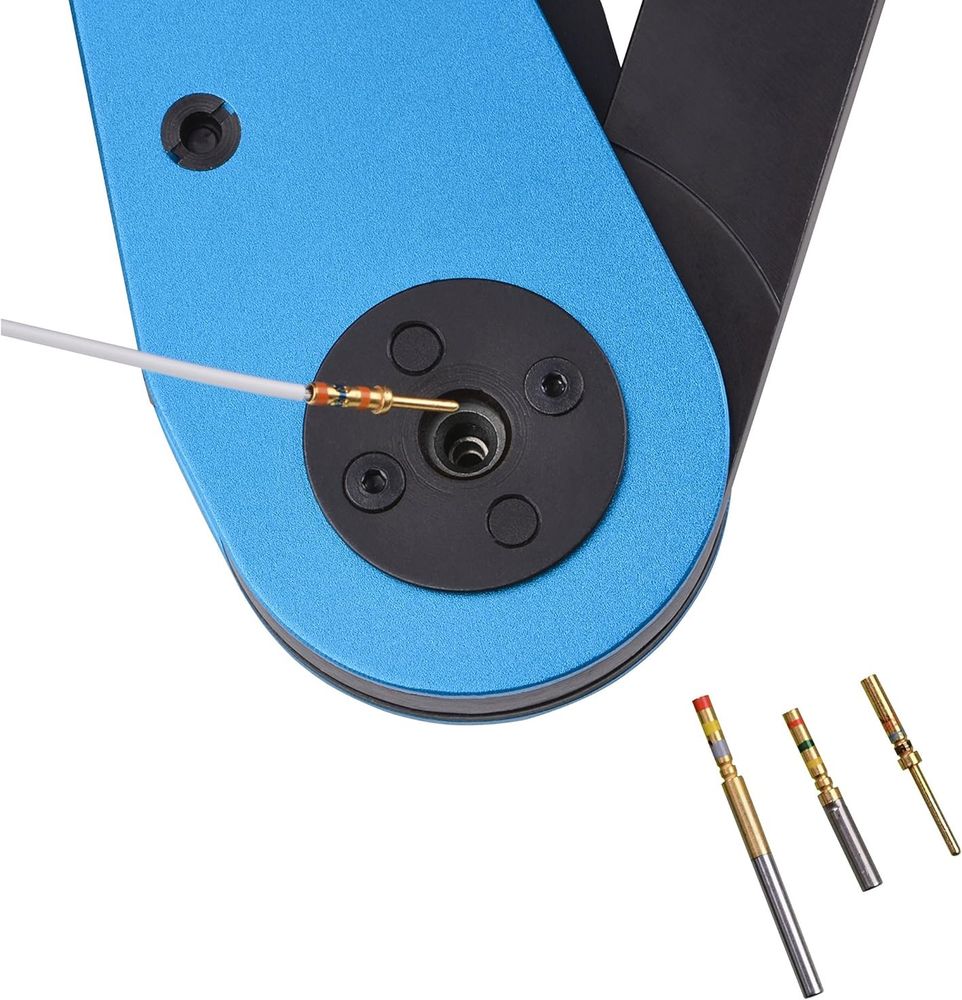

● The four intenders do the centripetal linear motion, which makes its front-end teeth crimp the contact to complete the crimping process
● Thanks to the cycle controlled precision ratchet,it assures the consistency of impression and the crimping quality of wires and contacts;Crimping pressure is factory precise calibrated
● Material of Mould Steel (Good Durability & Good Anti-deformation & Good appearance & Anti-rust）
● Suitable for crimping round contacts of MIL standard, Harting, Hardin, Wain, TE connectors

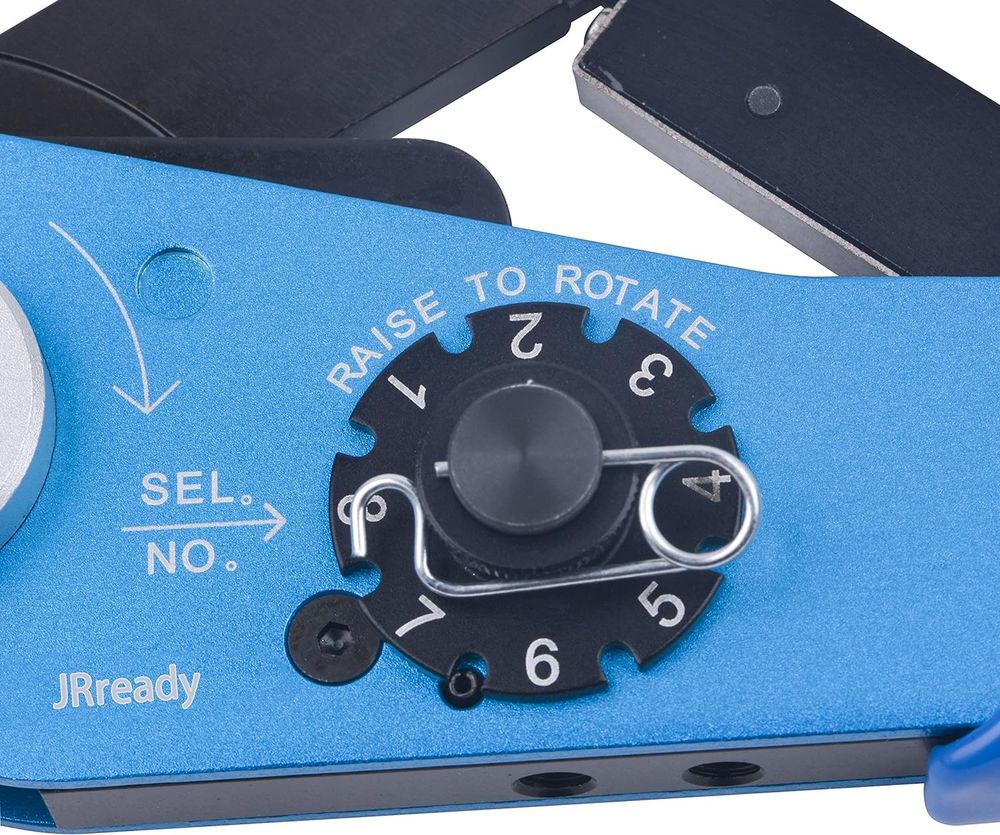

● 8 Selector Numbers（Adjustable crimping ranges in different selector number, more convenient for wider applications）
SPECIFICATIONS:

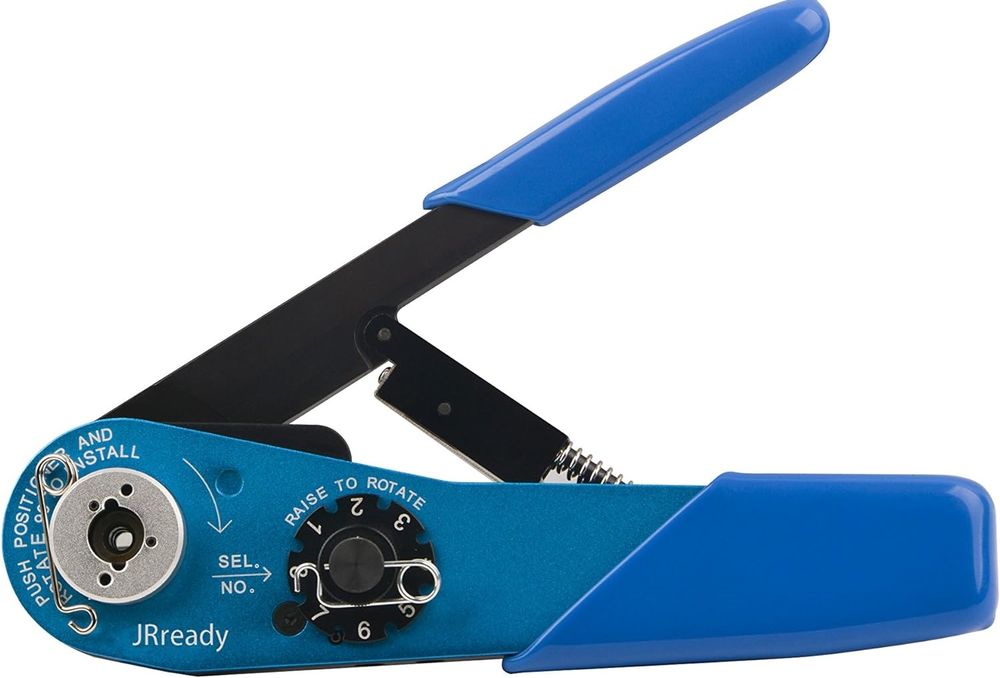

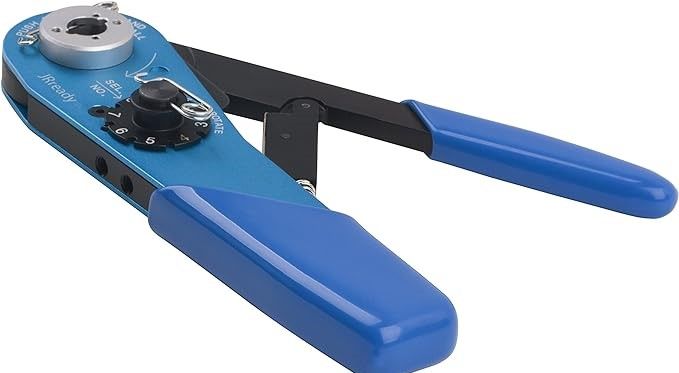

● Name: YJQ-W1A Hand Crimping Tool
● Material: Mould Steel
● AWG: 20-32 AWG (0.52mm²-0.032mm²)
● Overall Length: 170mm/ 6.69inch
● Weight:305g/0.67 lb
